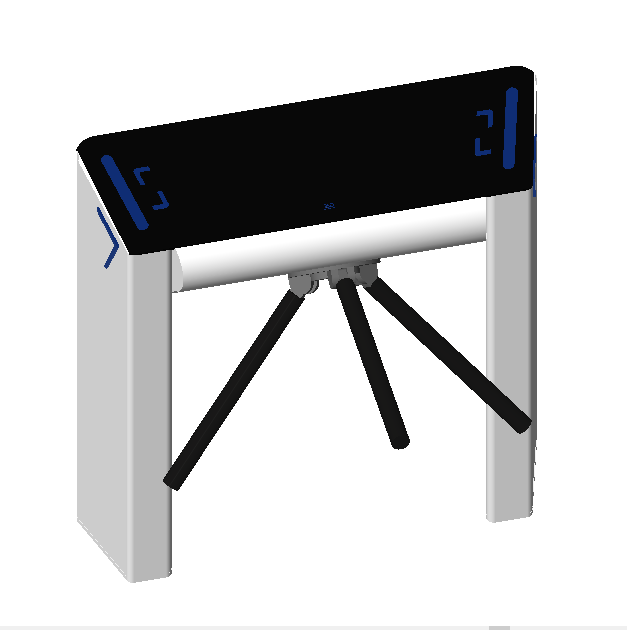

Ergonomically designed with stylish lines which encapsulates a sturdy chassis and efficient control system, producing a unit which is ideal for today’s contemporary interiors. These turnstiles are equipped with an automatic bi-directional servo-drive mechanism with a robust locking system and are able to operate reliably and efficiently in high traffic flow locations. Two RFID readers are integrated under the top glass reader panels, with LED lighting which provides a clear indication for users to present their access control cards. The combination of all of these LED features clearly determines the status of the passage (Green – Access authorised, Red- Access denied and Blue – Standby mode)
Model Onyx-М
Crossing capacity in free access mode, person/min 60
Crossing capacity in single access mode, person/min 25
Passage width, mm 600
Mechanism Servo-driven
Blocking mechanism two electromagnetic stoppers
(separate locking system)
Emergency mode
(when power goes off) fail-safe (lowering the leash)
Drop arm function
Activated manually or by command from the access control / fire alarm
Standard housing Brushed SS AISI 304
Brushed SS AISI 316
Polished SS AISI 304
Polished SS AISI 316
Powder coated (any RAL up on request)
Voltage AC (100-240)V, 50/60Hz;
DC source 12 V
Maximum power consumption 55
Protection level IP41
MCBF, cycles 1 500 000
